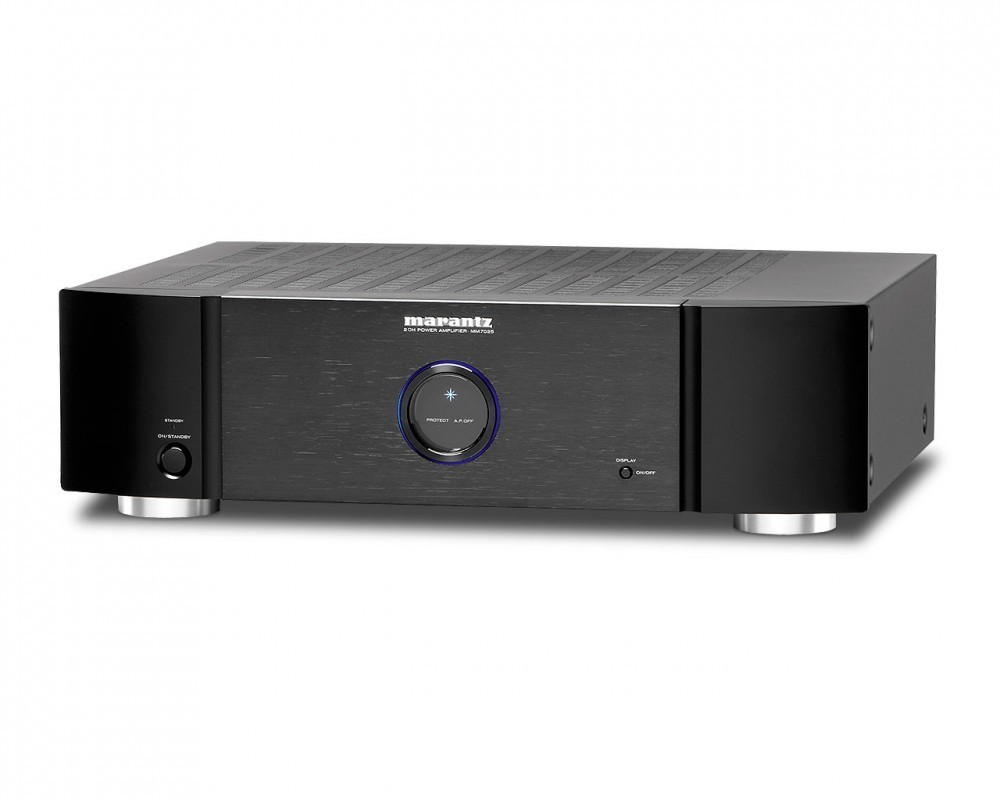

MARANTZ MM7025
MM7025 är årets perfekta två-kanalsförstärkare som ger enorma 140W RMS per kanal i 8 ohm. Kör den i en AV-setup och ge dina frontkanaler en jordbävnings-boost eller gör en helt enkelt sensationell uppgradering till din befintliga stereoanläggning. Och eftersom tekniken är densamma som i MM7055 och MM8003 är en kombination med dem både snabb, effektiv och enkel. Den är enort flexibel så du kan få det som du vill ha det. Och som med storebror MM7055 har den också ett nytt snyggt teckenfönster, XLR-ingångar, DC triggers och Marantz buss.
Current Feedback
Current Feedback amplification is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.
Customized Components
On paper an electrical component might look excellent but the result may fall short of the combined design expectations. Marantz selects the appropriate components for the specific design application. In some cases it’s simply not possible to use standard components that meet the high Marantz standards. These components will then be specially made for Marantz in close cooperation with the Marantz engineers.
IR Flasher IN
The IR-Flasher IN is a standardized connection to control the AV system by external IR receivers independent of the infra red control format used. On the IR-Flasher OUT an IR-Emitter can be connected to controlled third brand components. The third connection link to this is the IR-Receiver INPUT which is similar to the IR-Flasher In, but it outputs a voltage to directly feet an external IR-Receiver eye. Please check capability per product in the specification section.
Linear drive power supply
LDPS - Marantz own technology to design a power supply capable to follow all details of an audio signal to reproduce the finest sound quality.
Modell
MM7025Varumärke
Jämför produkt
FEATURES MM7025
Channels 2
Current Feedback Topology o
Phono EQ: Standard/Current Feedback/Constant
Current Feedback
- / - /-
HDAM version -
Power Transformer: Toroidal/El - / o
High Grade Audio Components o
Customised Components o
Symmetric PCB layout -
Aluminium extrusion heatsink o
Copper plated chassis -
Tri-Tone Control (Bass/Mid/Treble)
Balance/Bass/Treble/Loudness -
OTHER
Linear Drive Power Supply o
BTL possibility -
Bi-Amp and Multichannel option -
Shottkey diodes -
Input Buffer Amp (All inputs/CD only) o / -
Seperate solid heatsinks -
System block shielding: copper/metal/none - / - /-
Double layer bottom plate -
Source Direct -
Power Amp Direct -
Standby mode - / - / - / -

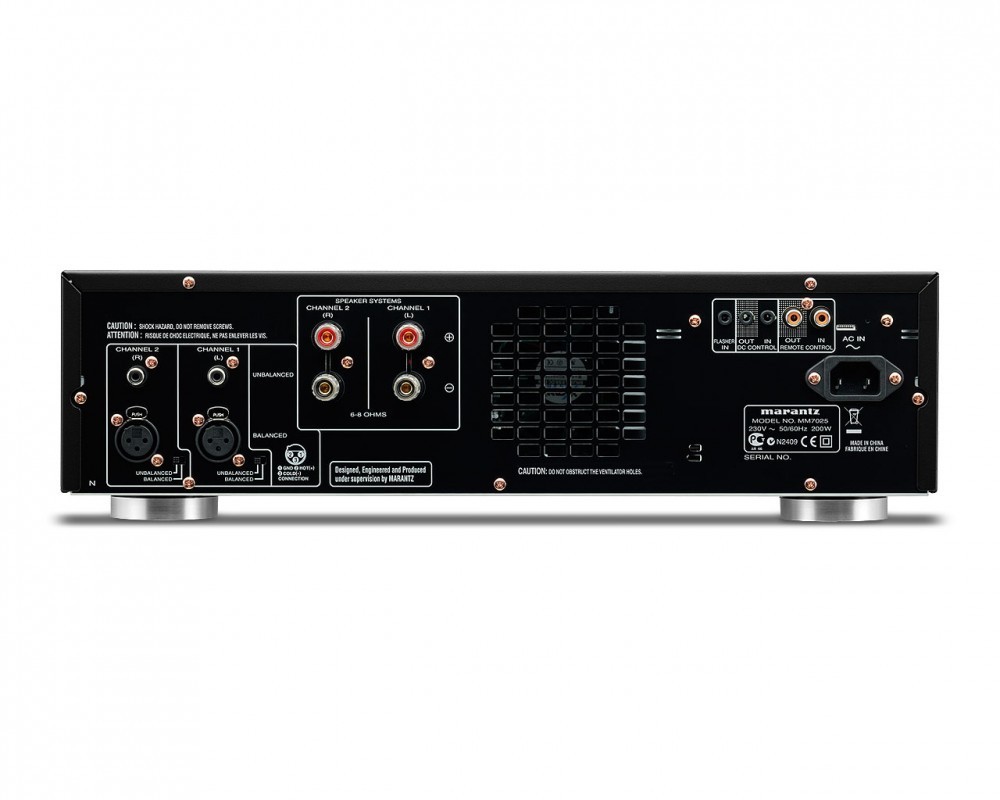

INPUTS/OUTPUTS
Phono Input: MM/MC - / -
Balanced In/Out 2 / -
Pre-Out/Main In - / 2
Power Amp Direct In o
Gold Plated Chinch -
Speaker A/B -
Speaker terminal: Screw/Marantz/WBT o / - / -
Number of terminals 2
Marantz remote bus o
Remote power control (Trigger In/Out) o
Flasher In/IR receiver In o / -
Headphone Out -
SPECIFICATIONS
Power Output (8/6 Ohm RMS) 140/170 Watts
Power Output (8/6 Ohm DIN) -
Power Output (8/6 Ohm IHF) -
Bridged Power Output (8 Ohm RMS) -
Frequency Response 8Hz-100kHz
Total Harmonic Distortion 0.03%
Damping Factor 100dB
Input Sensitivity: MM -
Input Sensitivity: MC -
Signal to Noise Ratio: MM/MC - / -
Input Sensitivity: High level 1.2V/22kohm
Input Sensitivity: Balanced High level 2.4V/30kohm
Signal to Noise Ratio: High level 105dB
GENERAL
Available colors: Gold/Silver/Black/Silver-Gold - / - / o / -
Metal Front Panel o
Power Consumption in W 220
Standby Consumption in W 0.4
Auto Power off o
Detachable Power Cable o
Remote Control -
System Remote Function -
Maximum Dimensions (W x D x H) in mm 440x350x126
Weight in kg 10.5
