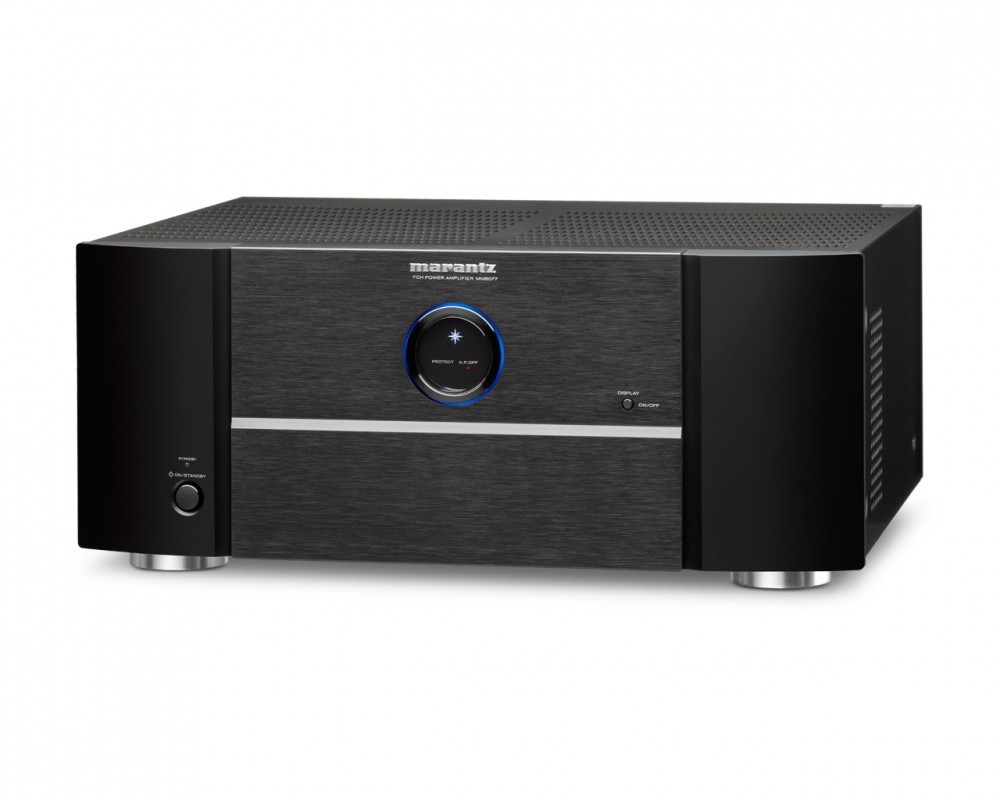

MARANTZ MM8077
Designed for the ultimate music and movie surround sound experience, the MM8077 7-channel power amplifier is equipped with the same amplifier technologies that are incorporated in our reference class hi-fi amplifiers, including our unique current feedback discrete power amplifier stage design, which features a high slew rate that provides a wide bandwidth for the utmost enjoyment of today’s high resolution audio formats. All output stages feature identical topology for uniform high quality sound across all channels, and the MM8077 provides the option to choose between balanced (XLR) and unbalanced (RCA) inputs for each channel, for maximum system configuration flexibility. High current, high bandwidth discrete power transistors can handle short term musical bursts with aplomb, even into difficult low impedance speaker loads.
- 7x 150W (8 ohm), 7x 180W (6 ohm) RMS power (20Hz-20kHz)
- Current feedback discrete power amplifier
- High current power supply with toroidal power transfomer
- Marantz reference-grade power supply filter capacitors and high speed, high current discrete power transistors
- Low impedance continuous drive capability
- Highest sound quality design based on pure surround philosophy
- Copper plated chassis
- Gold plated, high grade speaker terminals
- Flasher input, DC trigger (in/out), Remote control (in/out)
- Available in Black
Current Feedback
Current Feedback amplification is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.
Customized Components
On paper an electrical component might look excellent but the result may fall short of the combined design expectations. Marantz selects the appropriate components for the specific design application. In some cases it’s simply not possible to use standard components that meet the high Marantz standards. These components will then be specially made for Marantz in close cooperation with the Marantz engineers.
IR Flasher IN
The IR-Flasher IN is a standardized connection to control the AV system by external IR receivers independent of the infra red control format used. On the IR-Flasher OUT an IR-Emitter can be connected to controlled third brand components. The third connection link to this is the IR-Receiver INPUT which is similar to the IR-Flasher In, but it outputs a voltage to directly feet an external IR-Receiver eye. Please check capability per product in the specification section.
Linear drive power supply
LDPS - Marantz own technology to design a power supply capable to follow all details of an audio signal to reproduce the finest sound quality.
Modell
MM8077Varumärke
Jämför produkt
Finesser
| Kanaler | 7 |
| Current Feedback Topology | o |
| Transformator nätdel: Toroid/El | o / - |
| Högkvalites audiokomponenter | o |
| Anpassade komponenter | o |
| Kylfläns av extruderad aluminium | o |
| Kopparpläterat chassi | o |
| Linear Drive strömförsörjning | o |
| Ingångsbuffert förstärkare (alla ingångar / endast CD) | o / - |
| Separata kylflänsar | o with tunnel |
| Effektförstärkare direkt | o |
| Standby tillstånd | o auto |
| Balanserad in / ut | 7 / - |
| Pre-ut / Main-in | - / 7 |
| Effektförstärkare Direct IN | o |
| Guldpläterade kontakter | o |
| Högtalarterminal: Skruvterminal / Marantz / WBT | o / - / - |
| Antal terminaler | 7 |
| Fjärrstyrning av / på (Trigger - in / ut ) | o |
| Flasher in / IR Receiver in | o / - |
| Finns i varianterna: Guld / Silver / Svart / Silver-Guld | - / - / o / - |
| Frontpanel av metall | o |
| Effektförbrukning i W | 880 |
| Standby effektförbrukning i W | 0.4 |
| Automatisk avstängning | o |
| Avtagbar strömkabel | o |
| Maximum Dimensions (W x H x D) in mm | 440 x 185 x 384 |
| Vikt i kg | 18.0 |
